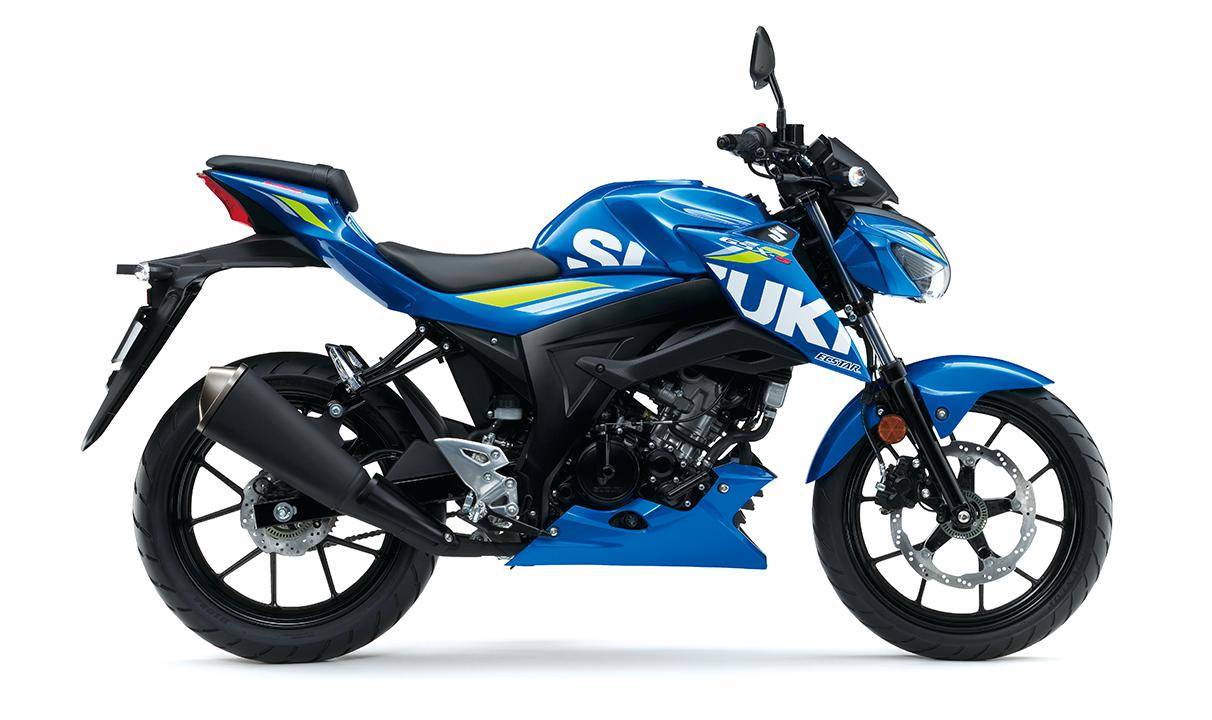

SUZUKI GSX-S125 ABS
-
15
Snaga (ks)
-
124.4
Zapremnina (cm3)
-
133
Masa (kg)
-
2.3
Potrošnja (l / 100 km)
- Metallic Triton Blue (YSF)
Dimenzije
| Ukupna dužina | 2020 mm | Ukupna širina | 745 mm |
| Ukupna visina | 1040 mm | Međuosovinski razmak | 1300 mm |
| Udaljenost od podloge | 155 mm | Visina sjedala | 785 mm |
| Ukupna masa | 133 kg | Obujam spremnika za gorivo | 11 L |
Specifikacije motora
| Radni obujam | 124.4 cm3 | Tip motora | 4-taktni, 1-cilindrični, vodom hlađen, DOHC |
| Provrt × hod | 62 mm x 41.2 mm | Compression ratio | 11.0 : 1 |
| Lubrication | Wet sump | Ignition | Electronic ignition |
| Sustav goriva | Ubrizgavanje goriva | Mjenjač | 6-stupanjski mehanički |
| Pogon | Lanac | Vrsta paljenja | Električno |
| Potrošnja | 2.3 L / 100km | CO2 | 54 g/km |
| Snaga | 11 kW @ 10,000rpm (15 KS) | Okretni moment | 11.5 Nm @ 8,000rpm |
Specifikacije šasije
| Prednji ovjes | Teleskopska vilica, spiralna opruga uljni amortizer | Stražnji ovjes | Centralni opružni član, spiralna opruga, uljni amortizer |
| Prednje kočnice | Disk | Stražnje kočnice | Disk |
| Prednji Pneumatik | 90 / 80-17M / C, tubeless | Stražnji Pneumatik | 130 / 70-17M / C, tubeless |
The Naked Young Titanium
Dedicated Suzuki engineers behind the GSX-S line take their responsibilities very seriously : Every GSX-S must be very light and best performing in its class, in an unbeatable package. Now Suzuki engineers have applied their expertise and design philosophy to an exciting new street sport 125cm3-class motorcycle, based on the revolutionary GSX-R125
Modern Backbone
Frame and Chassis
There is a science to building high-performance engines and the GSX-S125's single cylinder, liquid cooled, DOHC (Double Over Head Cam) is a perfect example of how to make a lot of power out of a very efficient and compact power plant. This power combines with strong torque and exceptional fuel economy, to create an engine worthy of the GSX-S marque, it powers the GSX-S to great performance on the streets and a lot more.
Science of Engine Design
Science of Engine Design
There is a science to building high-performance engines, and the GSX-R125’s DOHC engine could be used in a university textbook as an example of how to make a lot of power out of a very efficient and compact powerplant. The objective is combustion efficiency, optimal balance of the sporty engine character and fuel economy.
LED headlights and LED position lights
LED headlights and LED position lights
Reflecting its GSX-R heritage, the GSX-S125 features vertically stacked LED headlights, with the low beam above the high beam, and position lights on each side of the headlight. The GSX-S125’s LED headlights are bright and compact, lighter and longer lasting compared to conventional halogen-bulb headlights seen on competing machines.
Shutter-Key Lock Protection
Shutter-Key Lock Protection
The GSX-S125 features a convenient easy start ignition system with a shutter-key lock system. The key fob carries a unique, random magnetic code pattern which opens the shutter when the fob is lined up and pushed into a receiver on the ignition lock cover, and the ignition key can then be inserted into the lock and the ignition turned on. The shutter can be easily closed by pushing a button once the ignition is turned off and the key has been removed
Dual-Exit Exhaust
Muffler
The high-performance exhaust system includes a dual-exit muffler. A catalytic converter helps the GSX-S125 meet the Euro4 emission standards, letting everyone breathe a little easier.
Suzuki Easy Start System
Suzuki Easy Start System
The convenient easy start system automatically starts the engine with one touch of a button mounted on the handlebar; there’s no need to hold the button down until the engine fires.
Multi-Function, Full LCD Instrument Cluster
Multi-Function, Full LCD Instrument Cluster
The Suzuki GSX-S125 has a full LCD instrument panel set in a modern dashboard, framed by turn signal, neutral, hi-beam, coolant temperature, malfunction indicator lamp (MIL), ABS, and programmable engine-RPM indicator lights. The bright LCD panel includes a segmented-bar tachometer across the top; a digital speedometer; a gear position indicator; a digital clock; a digital odometer with dual trip meters; an average fuel consumption meter; a fuel gauge; and an oil change timing indicator. * All lights and indicators are illuminated in the photo for illustrative purposes.
Cast Aluminum Wheels with Dunlop Tires
Cast Aluminum Wheels with Dunlop Tires
The GSX-S125’s lightweight, sporty 10-spoke cast aluminum wheels carry Dunlop D102 tires. The Anti-lock Brake System (ABS) is the latest Bosch ABS 10 base unit, which is the lightest and most compact two-channel ABS system on the market.
